HONING MACHINE
FULLY AUTOMATED TUBE HONING

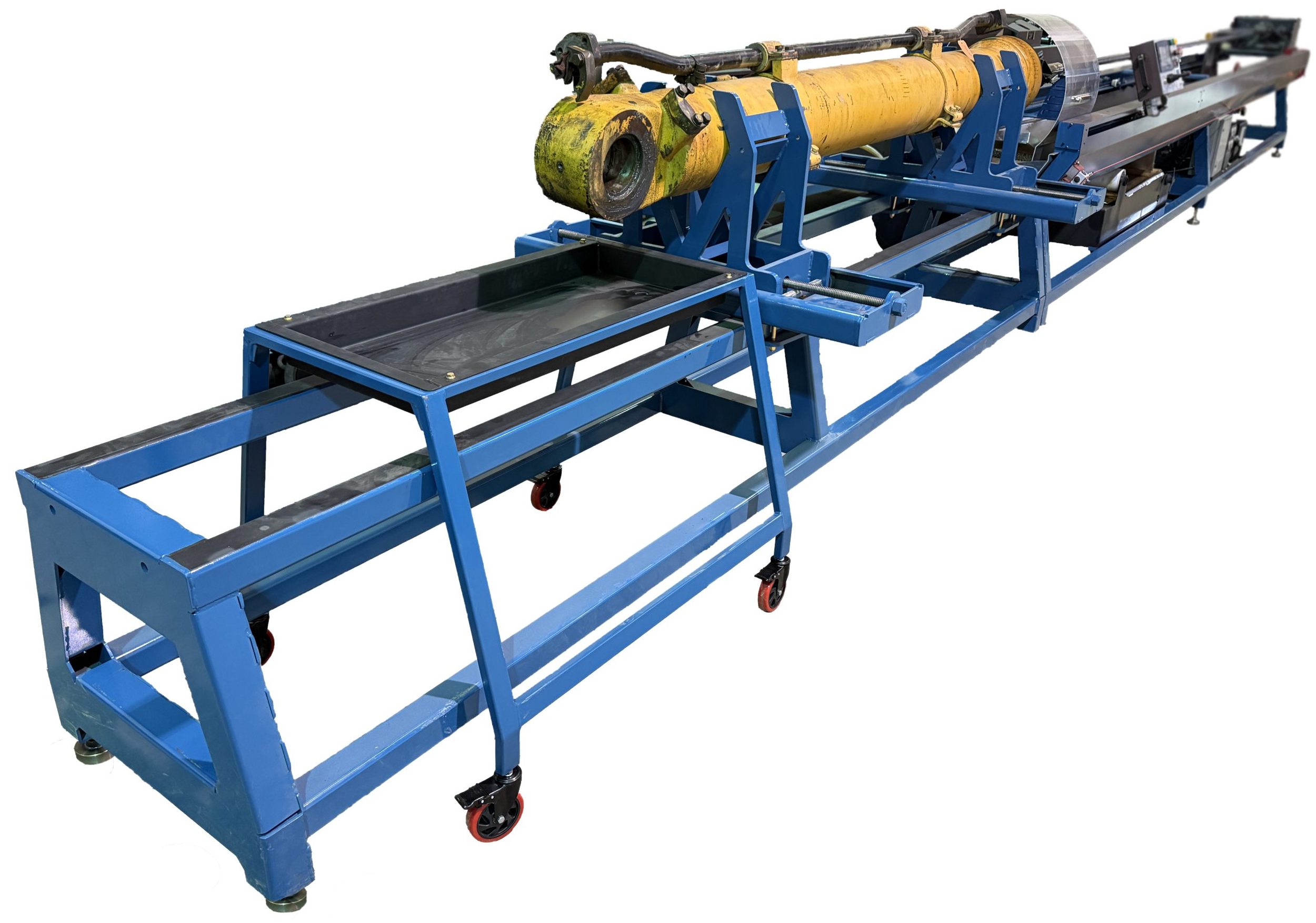

Fully Automated Tube Honing – Honix 15/ Honix 20

The HONIX 15/20 design is innovative and revolutionary, making it stand out from other honing machines in the hydraulic repair industry. It is designed by experienced engineers who removed the hassles in the honing process. Use the HONIX 15/20 to increase the quality and productivity of your operation.

Honing Machine
Honing Machine Constant Pressure Self Feed
Honing Machine Oil Cleaning System
Honing Machine Hydraulic Over Electric System
Honing Machine Automatic or Manual Cycling

Automatic or Manual Cycle

  • Increase operator productivity
  • Faster cutting rates
  • Consistent quality
  • Time-saving
  • User-friendly
  • Customer satisfaction
  • Reduce material waste
  • Decrease part rejects
  • Low maintenance

Honing Machine
Features

  • Voltage Max         410V,10Hp,3Ph,50/60 HZ,30A
  • Travel Max     15 ft or 20 ft , depending on the model
  • Travel Speed    50 ft/min
  • Bore Range    3.5”-21”
  • Max Honing Torque   100 ft/lb
  • Max Spindle Speed     200 rpm

Honing Machine
Consumables

  • Hydraulic Oil     Multi Grad 32/10 Gal
  • Honing Oil      20 Gal
  • Honing Head   ANR160A
  • Fuse    FRZ ATDR30 GLS/600V/30A (#3)
  • Fuse     7A (#1)
  • Fuse     3A (#3)
  • Filter    Paper media coolant (#2)
  • Oil Filter (Power Unit)       Buyers HFA51025

Innovative Design of the Honing Machine

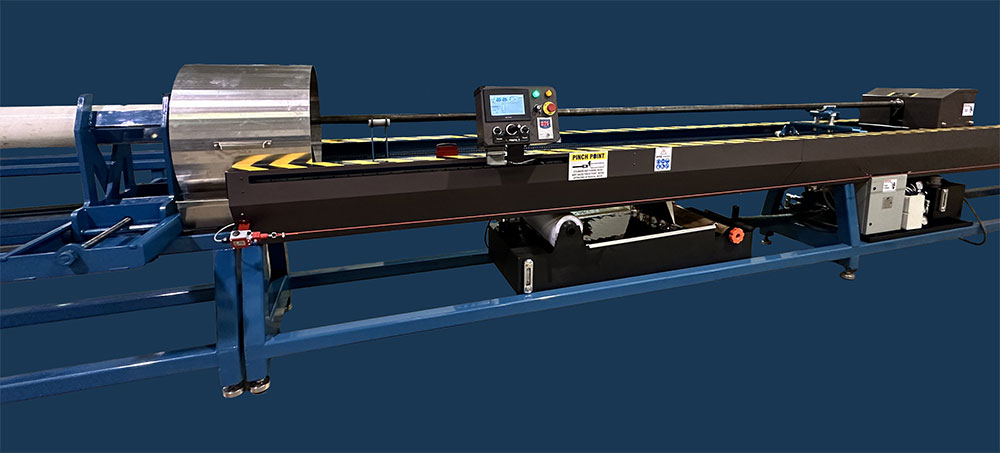

The HONIX 15/20 is a fully automated honing machine with electric over hydraulic design.

  • The hydraulic power unit is mounted below the frame that drives two hydraulic motors for the stroker and the honing head.
  • The honing oil centrifugal pumping system directly feeds the oil to the abrasive head media via the drive and feed assembly.
  • This innovative design does not require connecting a hose to lubricate the tube. The Operator can start honing without maintaining proper feed during the honing process.This is possible through a patent-pending constant-torque clutching mechanism.
  • The used honing oil is recycled through a 3-stage filtration process, thereby preventing galling between the workpiece and the tool.
  • This ensures maximum cutting rates, long abrasive media life, and quality results.
Honing Machine Design

Honing Machine Features

Honing Machine Oil Feeding System

AUTO HONING OIL FEEDING SYSTEM

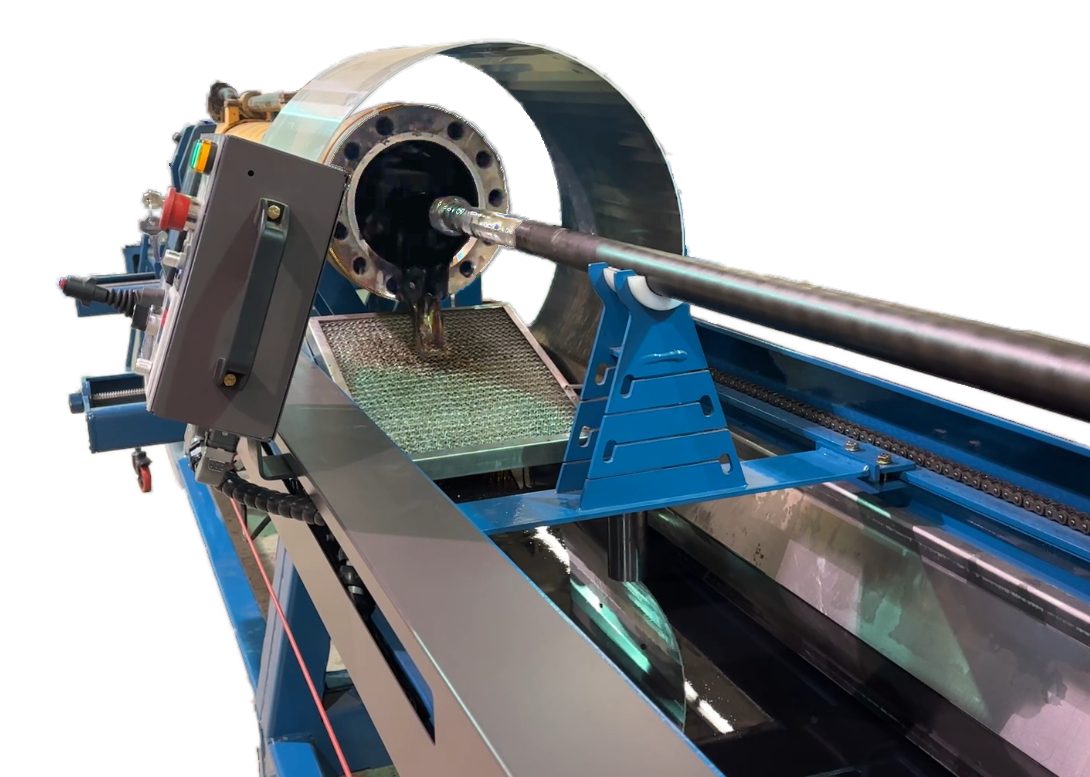

The honing oil is directly fed to the abrasive head media via the drive assembly.

Honing Machine Self-Centering Mechanism

SELF-CENTERING MECHANISM AND WORK HOLDING SYSTEM

Regardless of the tube size, this system allows rapid setup and ensures the tube is centred after clamping.

Honing Machine Load Stabilizer System

LOAD STABILIZER SYSTEM

The system balances the weight off the honing head. This results a smooth and precise product.

Honing Machine Touch Screen

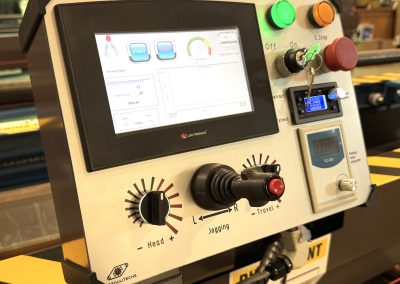

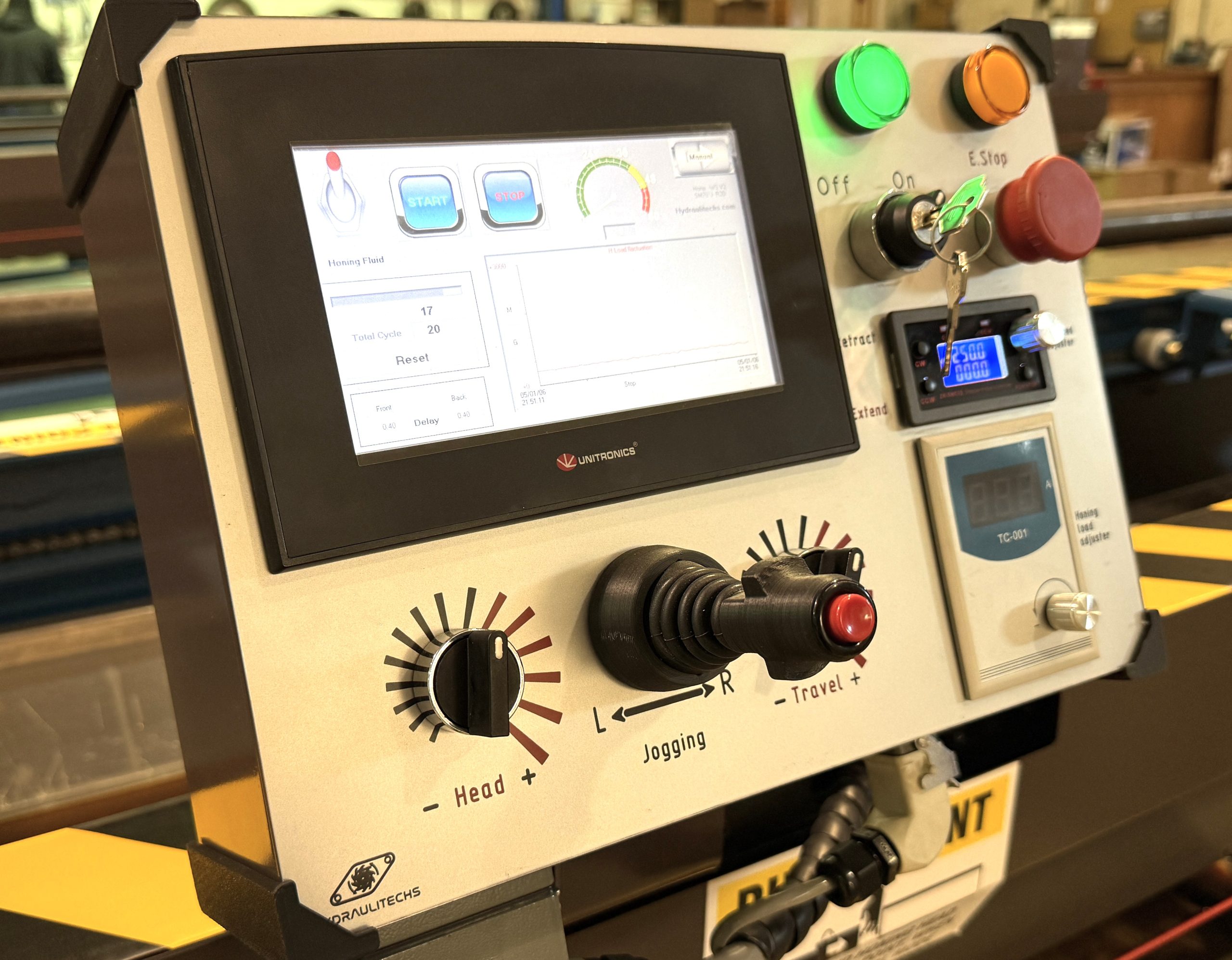

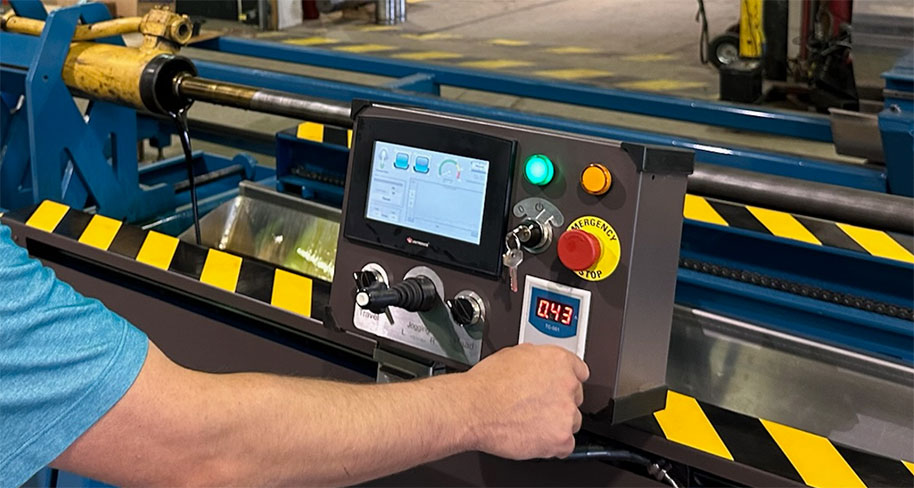

PLC CONTROLLED TOUCH SCREEN WITH LOAD GRAPH AND MANUAL BUTTON

Load graph displays the load along the honing shaft during the strokes. This helps indicate locations of the tight bore spots.The manual stroker is available on the PLC to allow the operator to move the honing tool over the stroke length, to set the ends of the stroke during setup process.

Honing Machine Oil Filtration

HIGH QUALITY HONING OIL FILTRATION

The 3-stage filtration system that includes magnets and paper media coolant filtration.

Honing Machine Auto Tensioning System

AUTO TENSIONING SYSTEM AND ADJUSTABLE LOAD WHEEL & REMOTE PRE-FEED WHEEL

The tensioner ensures the honing media remains in constant pressure contact with the tube during the entire honing process. Pre-feed wheel allows the operator to engage/disengage the honing stones with the bore.
