cylinder test units
Hydraulic cylinder test units and the graph box
Automatic Cylinder Test Unit-ACTU
The ACTU (Automatic Cylinder Test Unit) is a fully automated, PLC-controlled hydraulic cylinder testing system designed to perform complete test sequences with real-time monitoring and graphing.
With a pressure rating of up to 5,000 psi, a 20 HP power unit, and a 100-gallon reservoir, the ACTU delivers fast, accurate, and repeatable testing for a wide range of hydraulic cylinders.

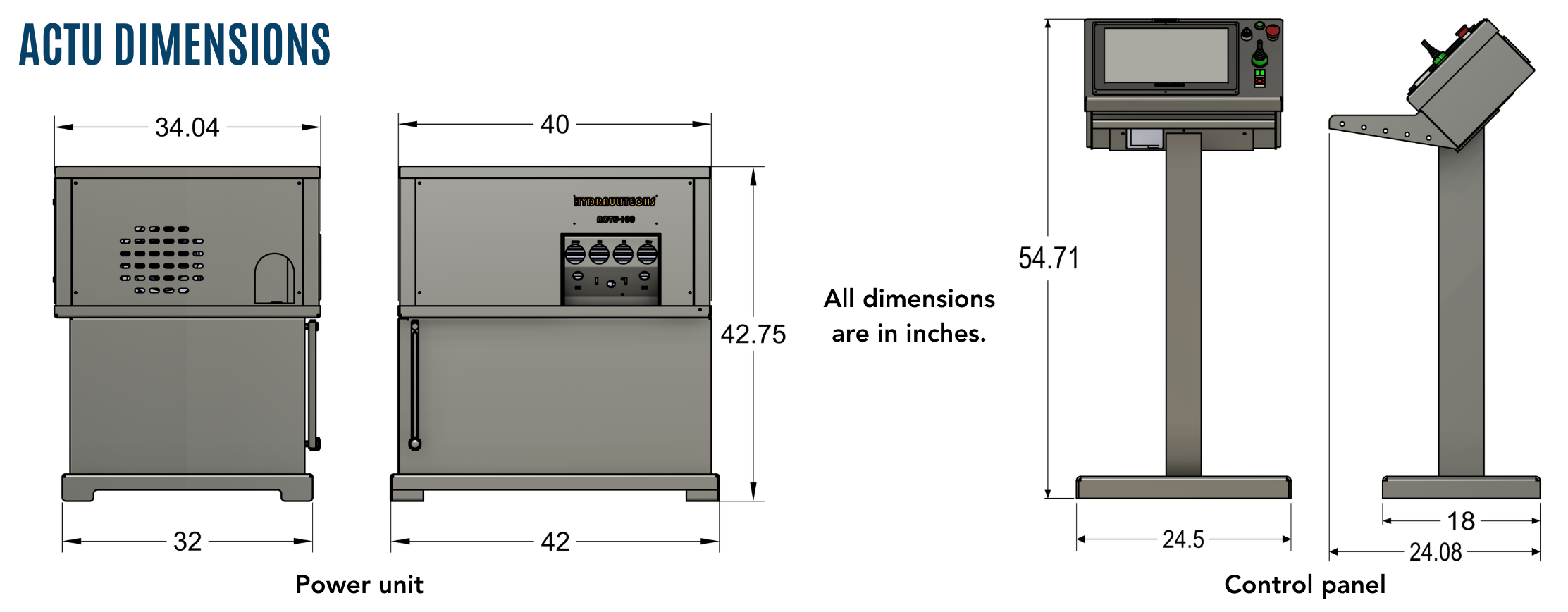

ACTU Overview

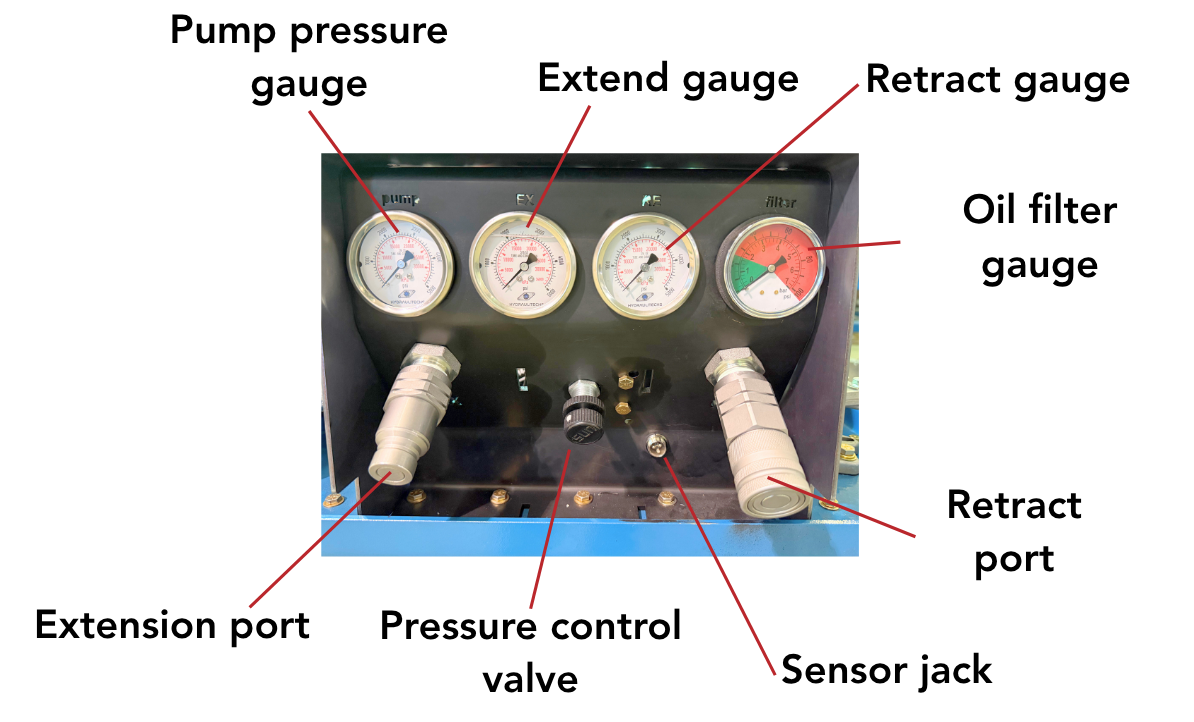

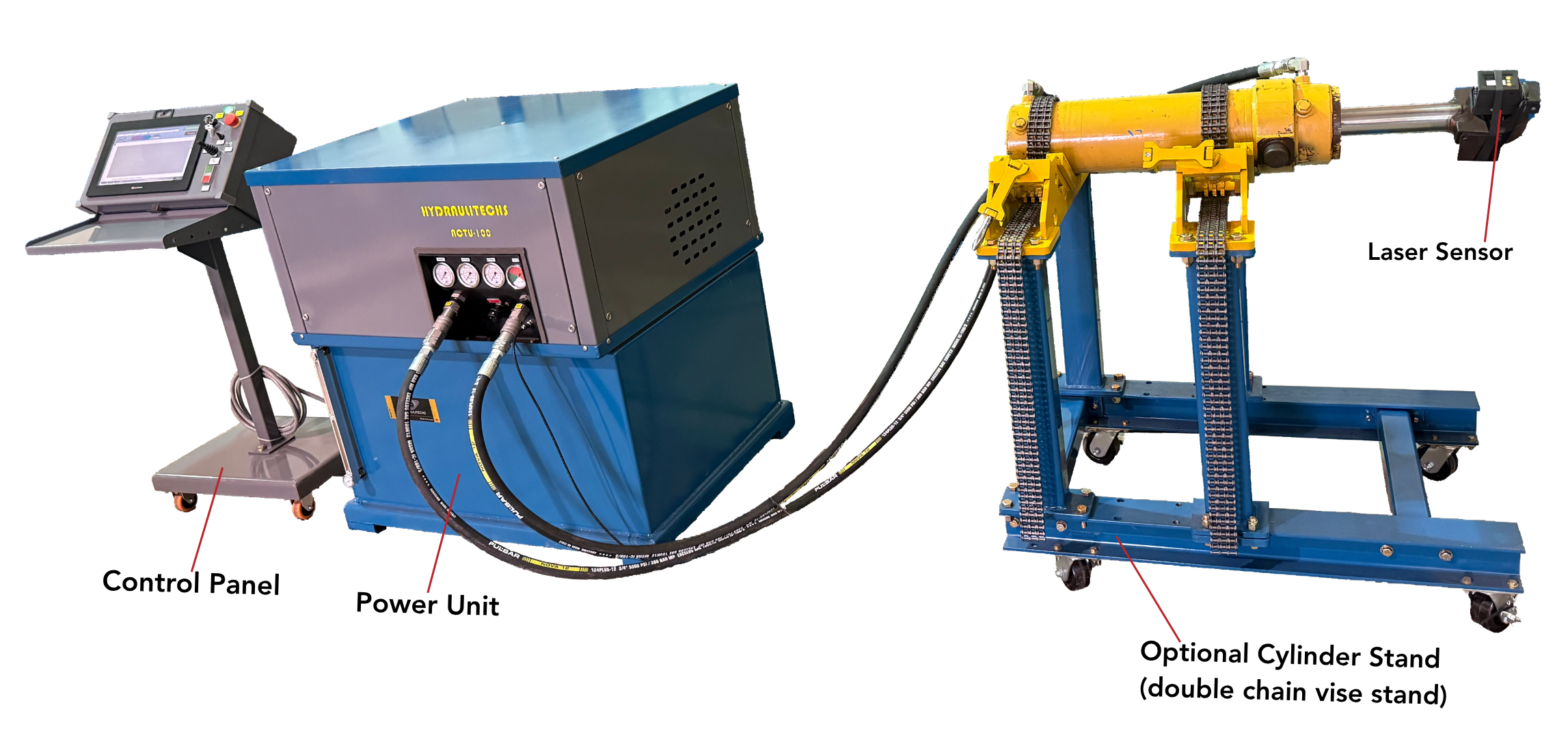

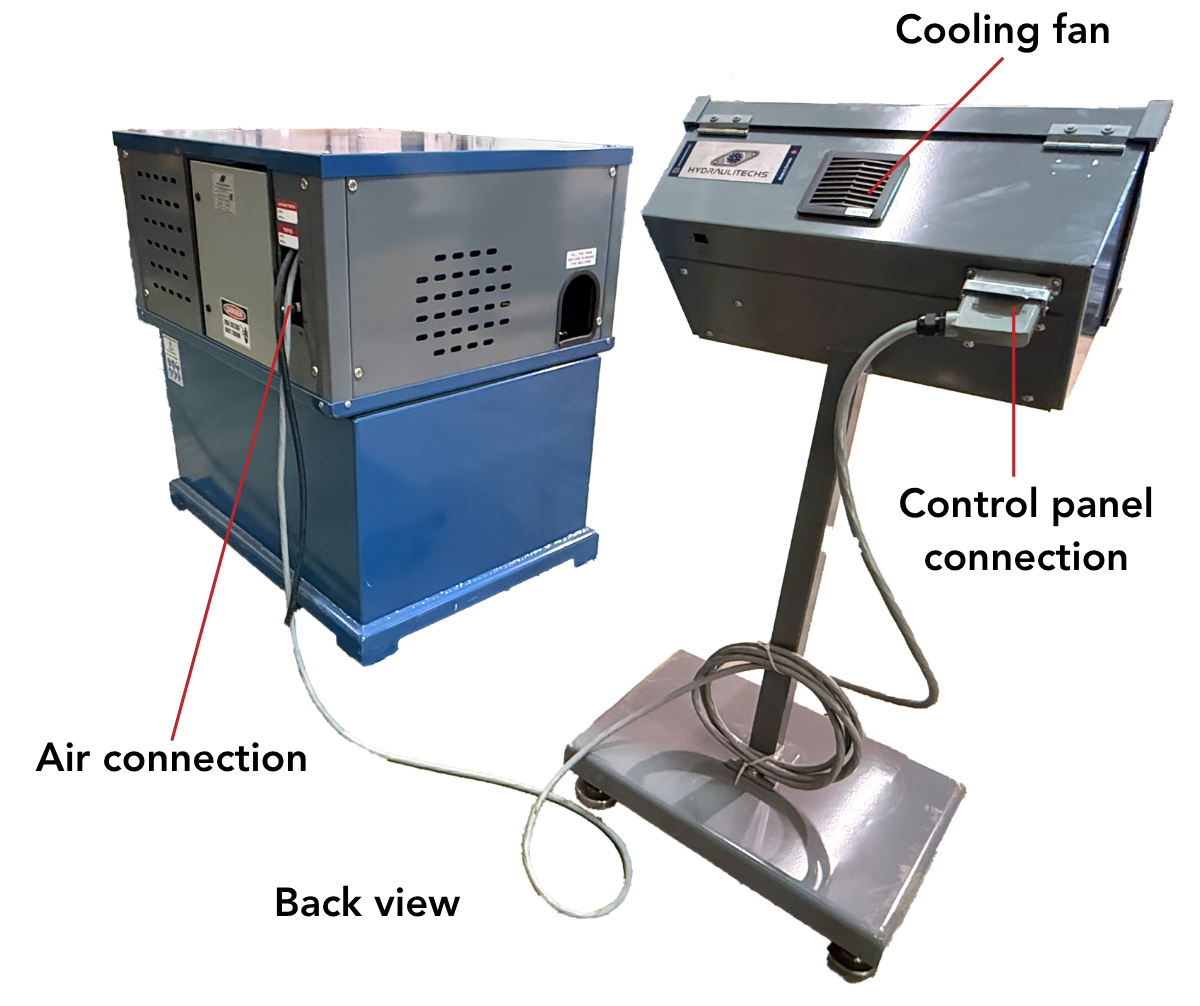

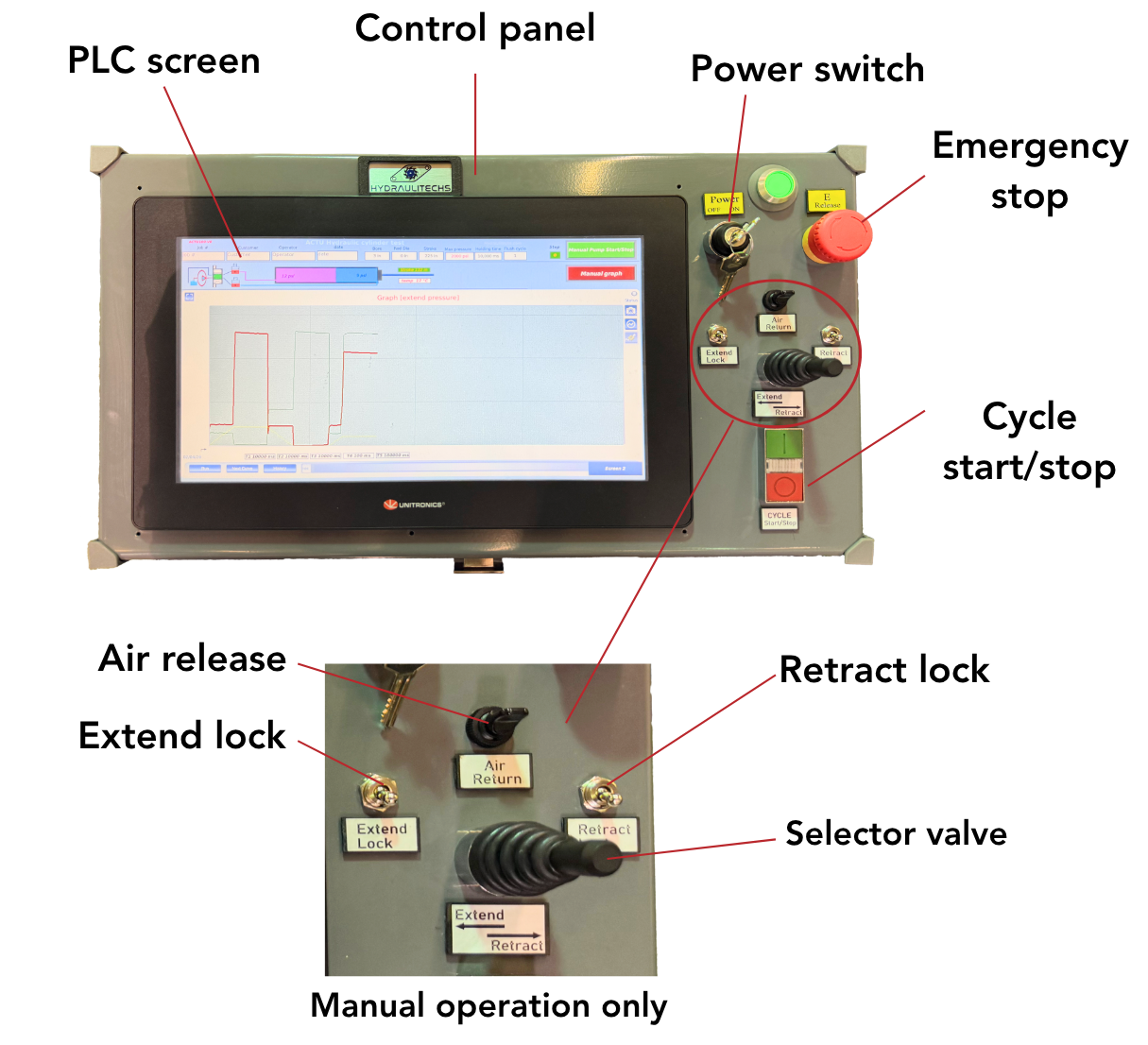

ACTU consists of two main components: a control panel mounted on wheeled stand, and a power unit equipped with connection ports and gauges for cylinder hookup. The power unit is connected to the PLC via a communication cable for system control and monitoring.

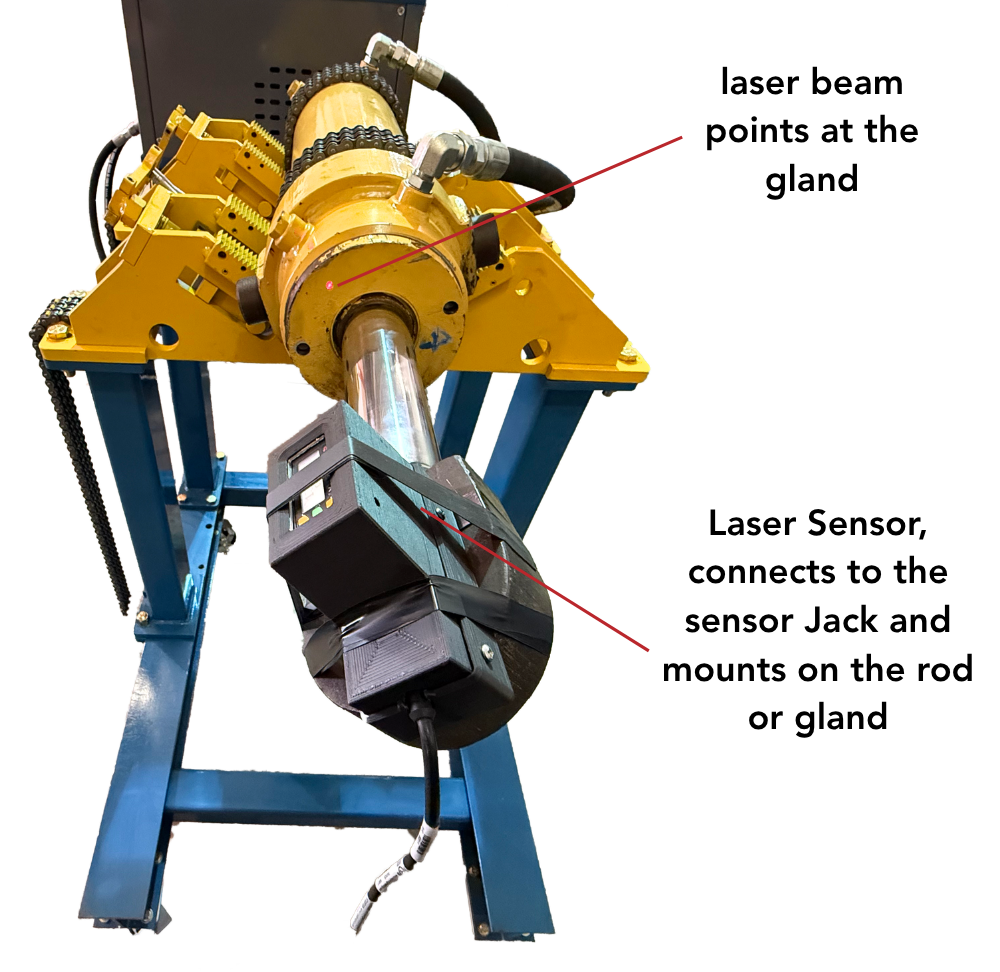

An optional double chain vise stand is available upon request.
actu
Features
The ACTU Test Unit offers unmatched flexibility and performance, making it ideal for hydraulic service centers and industrial repair facilities.
- Fully automated PLC-controlled operation
- Manual operaton capability

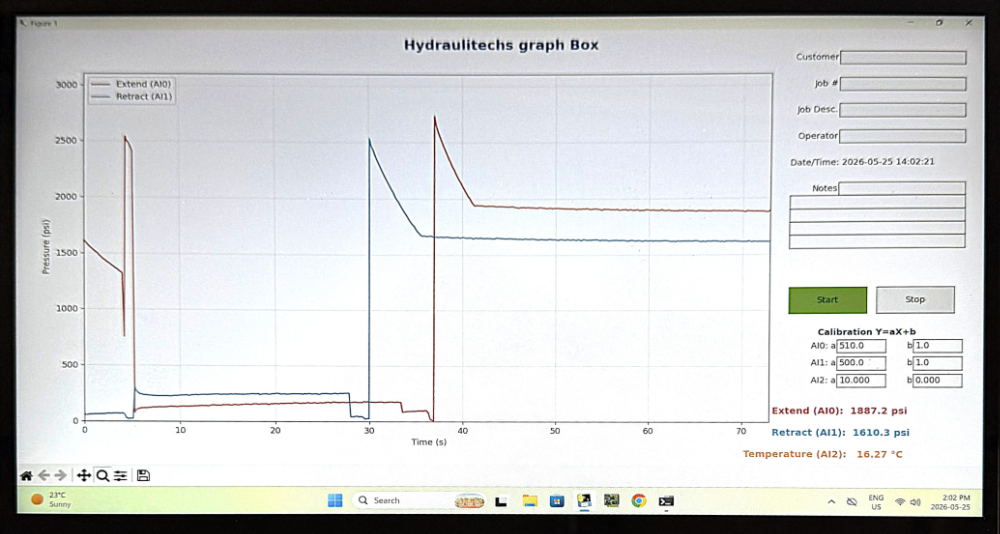

- Real-time monitoring and graphical data display
- High-pressure capability up to 5,000 psi
- 20 HP hydraulic power unit
- 100-gallon oil reservoir for stable operation
- Repeatable and consistent test cycles
- User-friendly interface
- Data logging and reporting capabilities
- Pressure Sensors and Flow Sensors
- Safety Valves and Relief System
- Customizable for your specific testing requirements
ACTU SPECIFICATIONS
| Maximum Pressure | 5000 psi (345 bar) |
| Motor Power | 20 HP |
| Motor Voltage | 575V AC, 3-phase |
| Tank Capacity | 100 gallons (≈380 liters) |
| Control System | PLC + HMI |
| Signal Type | 24V DC logic system |
| Pressure Sensors | 4–20 mA industrial transducers |
| Stroke Sensor | 0–10V linear encoder |
| Data Output | Real-time graph + stored files |
TLP/THP Test Units
The Hydraulitechs TLP and THP Dual Function Power Units are designed to operate the Torque Monster system while also performing hydraulic cylinder testing. The THP model is specifically built for testing at higher pressure ranges.
These units allow users to safely perform pressure and leakage tests, including mid-stroke bypass testing, to verify the integrity and performance of hydraulic cylinders.

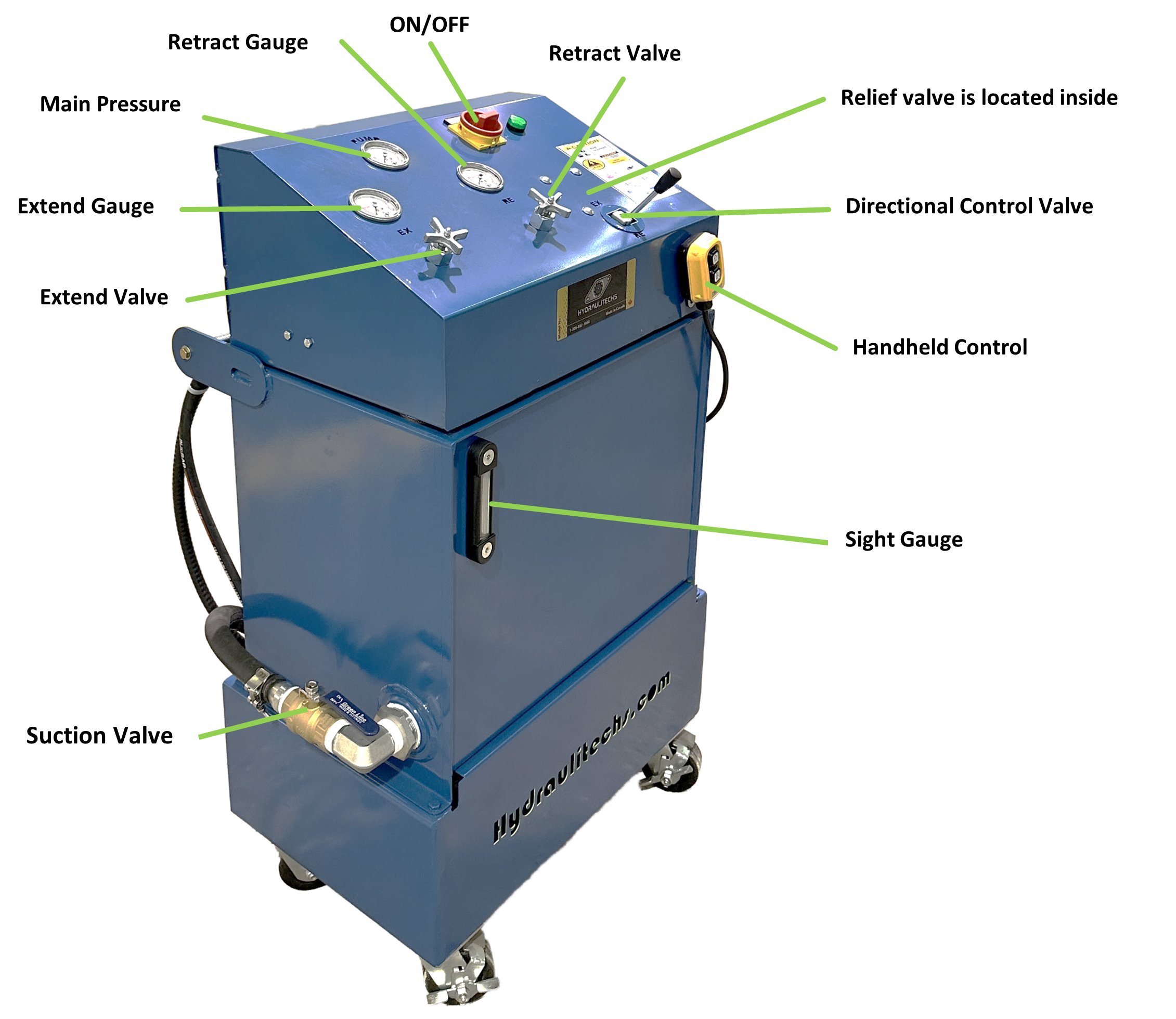

TLP Test Unit

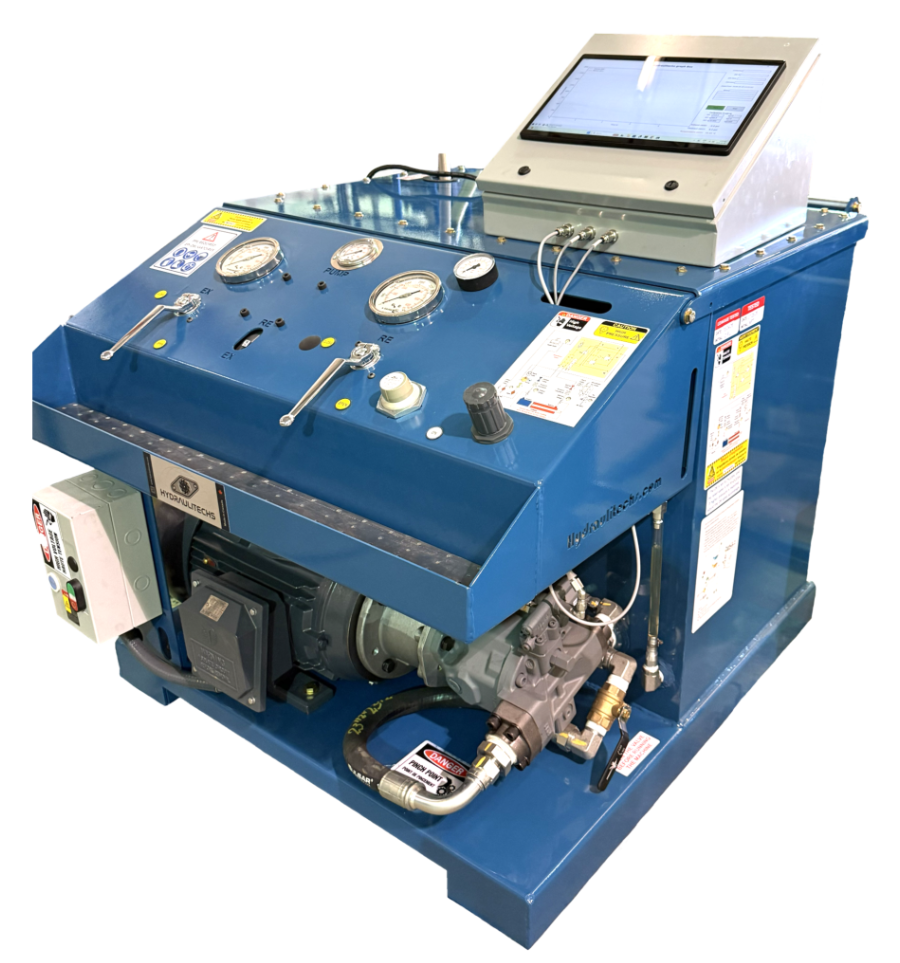

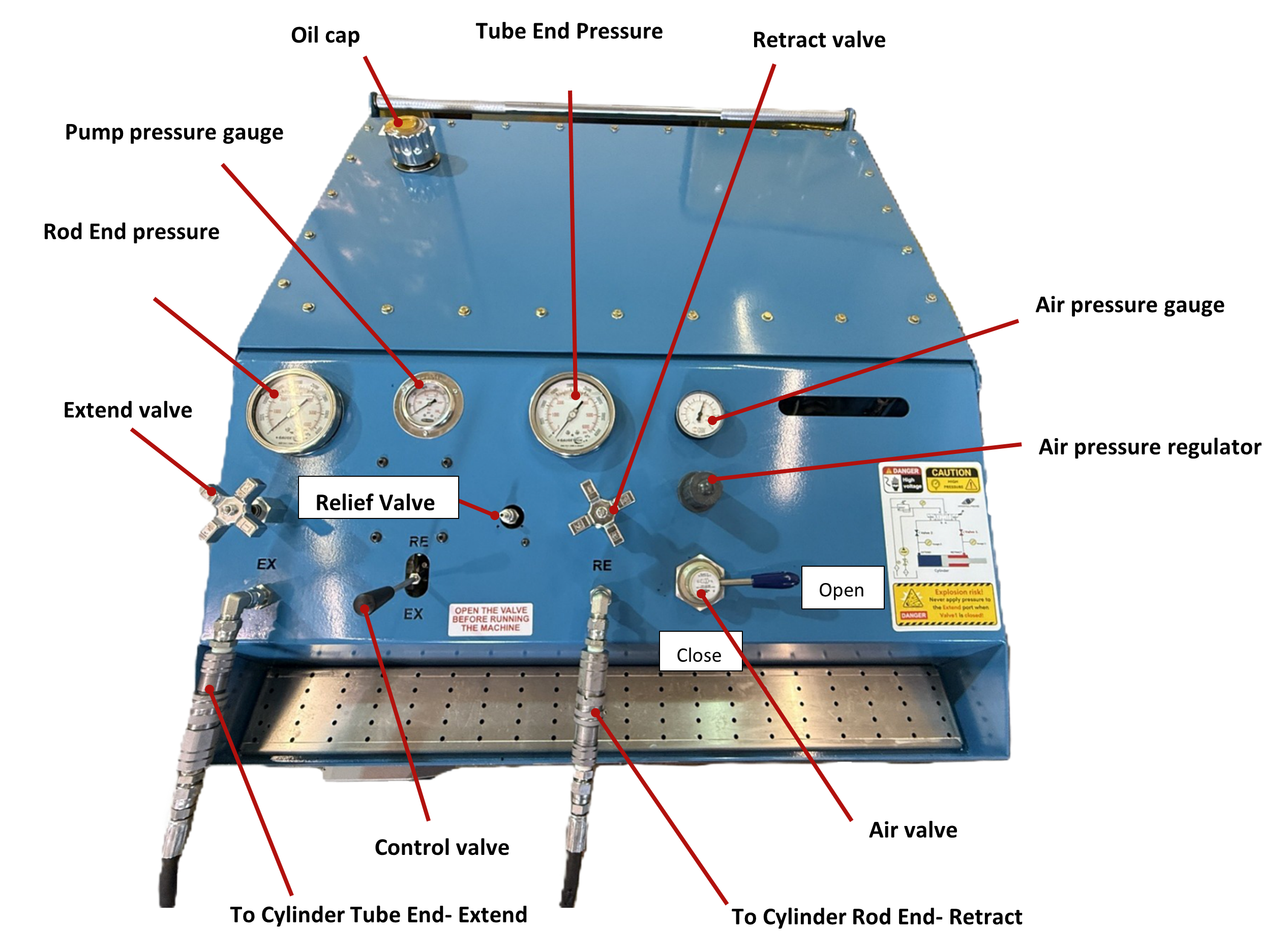

THP Test Unit
TLP/THP TEST UNIT Specifications
The test unit is a valuable addition, allowing you to test hydraulic cylinders on the Nutbuster table after repair. Conveniently, it is on wheels, providing mobility for ease of use. We provide two options:
TLP, TEST UNIT
| TLP | |
| Pressure | Up to 3000 PSI |
| Pump capacity | 2 – 5 GPM |
| Hydraulic oil | HV32 |
| Power | 5 HP, 220 V, AC line |
| Tank capacity | 25 Gallons |
THP, TEST UNIT
| THP | |
| Pressure | 4500 PSI/ Up to 10000 upon request |
| Pump capacity | 5-20 GPM |
| Hydraulic oil | HV32 |
| Power | 20 HP, 230 or 460 Voltage, AC line |
| Tank capacity | 100 Gallons |

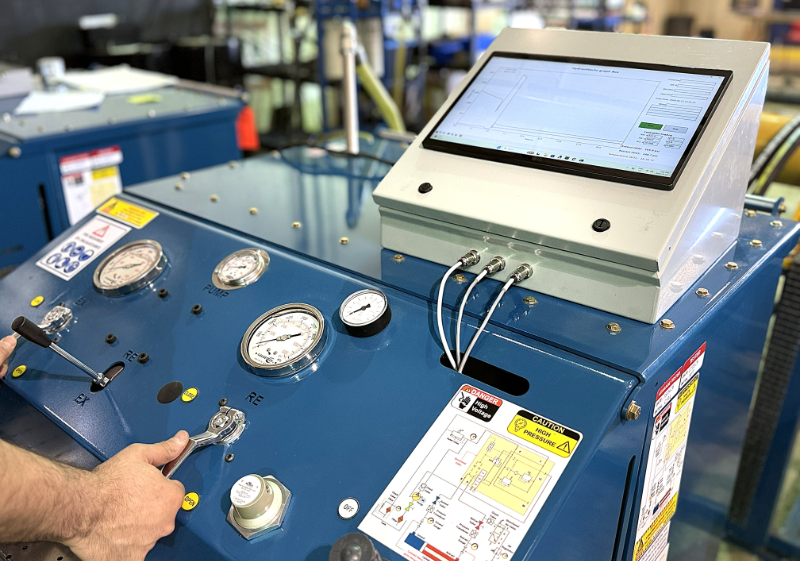

Graph Box-GB12
Portable multi-channel graph recording system designed for real-time pressure and temperature monitoring during hydraulic testing applications.
GB-12 Overview
- Portable graph recording system for real-time monitoring, data acquisition, and industrial testing applications.
- Supports multi-channel pressure, temperature, flow, and analog sensor inputs with 0–10 V and 4–20 mA compatibility.
- Features real-time graph trending, continuous data recording, touchscreen monitoring, and USB connectivity for data storage and export and LAN connection.
- Compact portable design with integrated industrial-grade signal conditioning for accurate, stable, and reliable operation.
- Ideal for hydraulic, laboratory, troubleshooting, diagnostics, and preventative maintenance applications.
- Expandable and customizable for integration with various testing and monitoring systems.
gb12
specifications
Inputs
Supports:
- 2 channel Pressure transmitters (0–10 V) or 4-20ma
- 1 channel Temperature transmitters (4–20 mA) or 0-10V
Signal Conditioning
- Integrated 4–20 mA to 0–10 V signal converter
- Shielded sensor wiring for noise reduction
- Multi-channel analog signal input
Data Acquisition
- MCC DAQ module
- Real-time graphing and recording to PC
- USB communication interface
Power
- 110-220 V power supply input
- Low-voltage portable operation
Connectivity
- B&E Electronics microphone-style connectors
- Quick-connect sensor interface
- USB connection to computer
Pressure & Voltage Range
- Customizable upon request
GB12 Features
Monitoring Functions
- Real-time pressure monitoring
- Real-time temperature monitoring
- Data logging and trend graph recording
- Multi-channel simultaneous acquisition
Construction
- Portable compact graph box design
- Industrial-grade wiring layout
- Field-serviceable connections
Typical Applications
- Hydraulic cylinder testing Unit integration
- Pressure decay and leakage testing
- Temperature monitoring during testing
- Industrial troubleshooting and diagnostics
